Adam's Hand

Latest firmware release: v 1.08.01

A prosthetic hand with highly anthropomorphic feautures

which shows enhanced biomimetic performance and human-like grasping behavior. These features, coupled with the high ease of use linked to the fully-adaptive grip technology we’ve developed, is able to perfectly support end-users in all the main activities of daily living, providing them with the confidence they need to express their full potential.

ADAM'S HAND WRIST SOLUTIONS

FEATURES

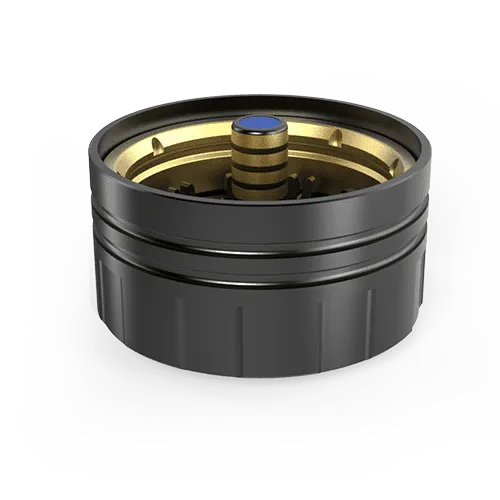

QUICK DISCONNECT
FRICTION
SHORT
NO PASSIVE
FLECTION WRIST
QDW
(Y = 1)
AH02-CS1-EE


Weight: 485 g
Length: 172 mm
FRICTION WRIST
(Y = 2)
AH02-CS2-EE


Weight: 455 g
Length: 172 mm
Coming Soon

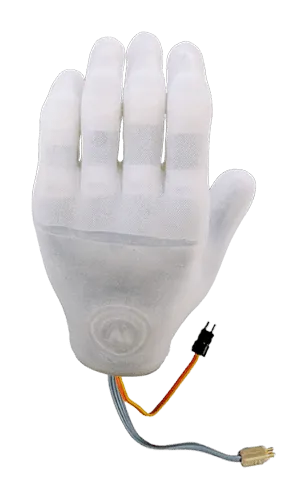

SHORT WRIST
(Y = 3)
AH02-CS3-EE


Weight: 445 g
Length: 161 mm
PASSIVE
FLECTION WRIST
FLEXION QDW
(Y = 4)
AH02-CS4-EE


Weight: 535 g
Length: 194 mm
Coming Soon
FLEXION FRICTION WRIST
(Y = 5)
AH02-CS5-EE


Weight: 505 g
Length: 194 mm
Coming Soon
FLEXION SHORT WRIST
(Y = 6)
AH02-CS6-EE


Weight: 495 g
Length: 183 mm
Coming Soon

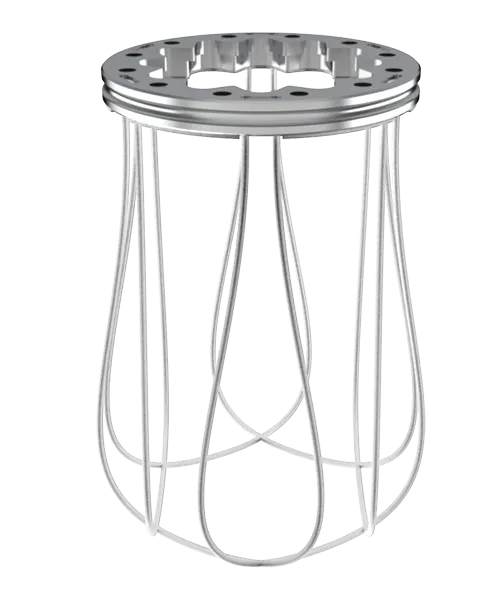

LAMINATION
COLLAR
QDW LAMINATION COLLAR
WL01


Kit Weight: 44 g (Ø45mm) - 64 g (Ø50mm)
Kit Length: 27 mm
FRICTION WRIST LAMINATION COLLAR
WL02


Kit Weight: 23 g
Kit Length: 12 mm
Coming Soon
SHORT WRIST LAMINATION COLLAR
WL03


Kit Weight:16 g
Kit Length: 9 mm
OVERALL LENGTH
No Flexion Wrist: 199 mm
Flexion Wrist:
221 mm
No Flexion Wrist: 184 mm
Flexion Wrist: 206 mm
No Flexion Wrist: 170 mm
Flexion Wrist: 192 mm
OVERALL WEIGHT
No Flexion Wrist:
529 g (Ø45mm) - 549 g (Ø50mm)
Flexion Wrist:
579 g (Ø45mm) - 599 g (Ø50mm)
No Flexion Wrist: 478 g
Flexion Wrist: 528 g
No Flexion Wrist: 461 g
Flexion Wrist: 511 g
FEATURES
QUICK DISCONNECT
FRICTION
SHORT
NO PASSIVE
FLECTION WRIST
QDW
(Y = 1)
AH02-CM1-EE


Weight: 570 g
Length: 196 mm
FRICTION WRIST
(Y = 2)
AH02-CM2-EE


Weight: 540 g
Length: 196 mm
Coming Soon
SHORT WRIST
(Y = 3)
AH02-CM3-EE


Weight: 530 g
Length: 185 mm
PASSIVE
FLECTION WRIST
FLEXION QDW
(Y = 4)
AH02-CM4-EE


Weight: 620 g
Length: 218 mm
Coming Soon
FLEXION FRICTION WRIST
(Y = 5)
AH02-CM5-EE


Weight: 590 g
Length: 218 mm
Coming Soon
FLEXION SHORT WRIST
(Y = 6)
AH02-CM6-EE


Weight: 580 g
Length: 207 mm
Coming Soon
LAMINATION
COLLAR
QDW LAMINATION COLLAR
WL01


Kit Weight: 44 g (Ø45mm) - 64 g (Ø50mm)
Kit Length: 27 mm
FRICTION WRIST LAMINATION COLLAR
WL02


Kit Weight: 23 g
Kit Length: 12 mm
Coming Soon
SHORT WRIST LAMINATION COLLAR
WL03


Kit Weight:16 g
Kit Length: 09 mm
OVERALL LENGTH
No Flexion Wrist: 223 mm
Flexion Wrist: 245 mm
No Flexion Wrist: 208 mm
Flexion Wrist: 230 mm
No Flexion Wrist: 194 mm
Flexion Wrist:
216 mm
OVERALL WEIGHT
No Flexion Wrist:
614 g (Ø45mm) - 634 g (Ø50mm)
Flexion Wrist:
664 g (Ø45mm) - 684 g (Ø50mm)
No Flexion Wrist: 563 g
Flexion Wrist: 613 g
No Flexion Wrist: 546 g
Flexion Wrist: 596 g

ADAM'S SKIN

The IP67 Glove of the Adam's Hand: Adam's Skin revolutionizes the way you experience life with a bionic hand! Cutting-edge IP67 silicon glove reinforced with textile fibers. No reduction in Adam's Hand strength and functionality.

ADAM'S SKIN BASIC

Choose from clear white, jet black, or 9 different skin tones for a truly unique style and fit.

Adam's Skin Basic is Medicare Approved for L-code L6895 (Addition to upper extremity prosthesis, glove for terminal device, any material, custom fabricated).

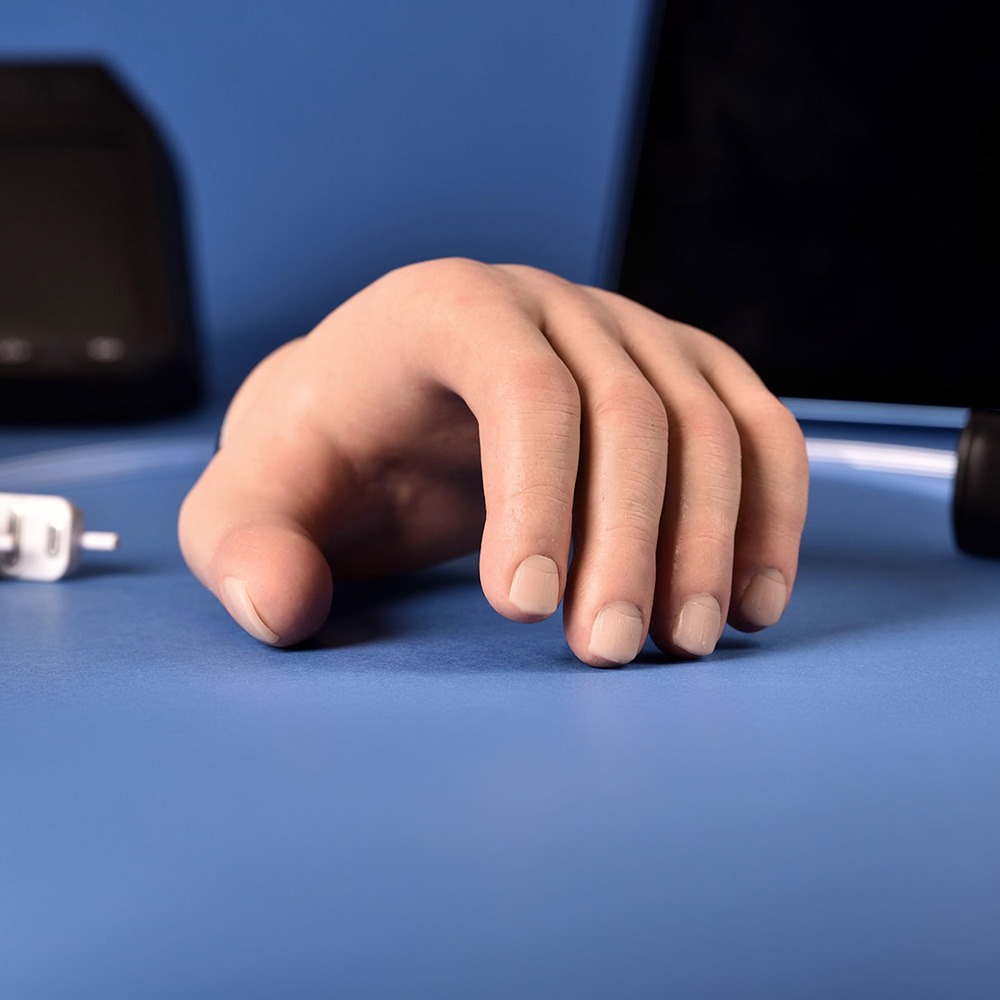

ADAM'S SKIN ADVANCED

Customize Adam's Skin with 3 shades from 24 skin tones for a look that truly mirrors a natural limb.

Adam's Skin Advanced can be associated with L-code 7499.

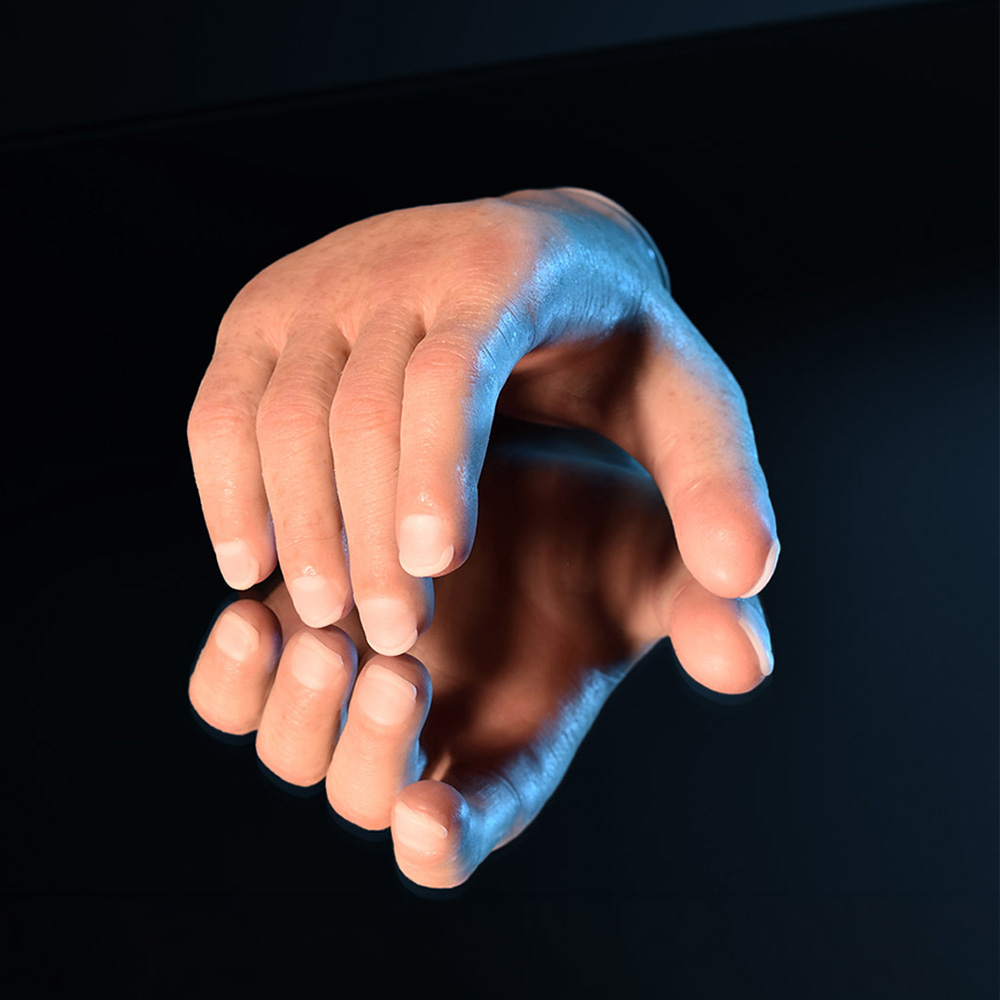

ADAM'S SKIN INDIVIDUAL

Customize Adam's Skin with 5 shades from 24 skin tones to perfectly replicate the natural limb, capturing every unique detail of the user's skin.

Adam's Skin Individual can be associated with L-code 7499.

App MyoLogic And MyoLogic Pro

Fully exploit the Adam’s Hand integrated AI:

Calibrate the Adam’s Hand in few seconds

Help end-users train their muscles with our virtual mode

Set the device functioning in every detail

Check the device’s diagnostic and the error log

Manage your end-users database

Provide personalized technical support with Remote Connection

Available On:
